Setup and configure a Notification Hub

This guide explains how to create a Notification Hub and enable Organization Notifications. See below for an explanation of these concepts.

APIs available for the Notification Hub

The Hub can provide:

• Producer API

• Consumer APIs

Producer API

Allows to create apps that can act as producers of notifications.

Includes ability to publish any type of Notification for any resource

• API

• API Product

• Apps

• Environment

The Async API contract for the producer can be found on your Connector:

http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/producer/api.yml

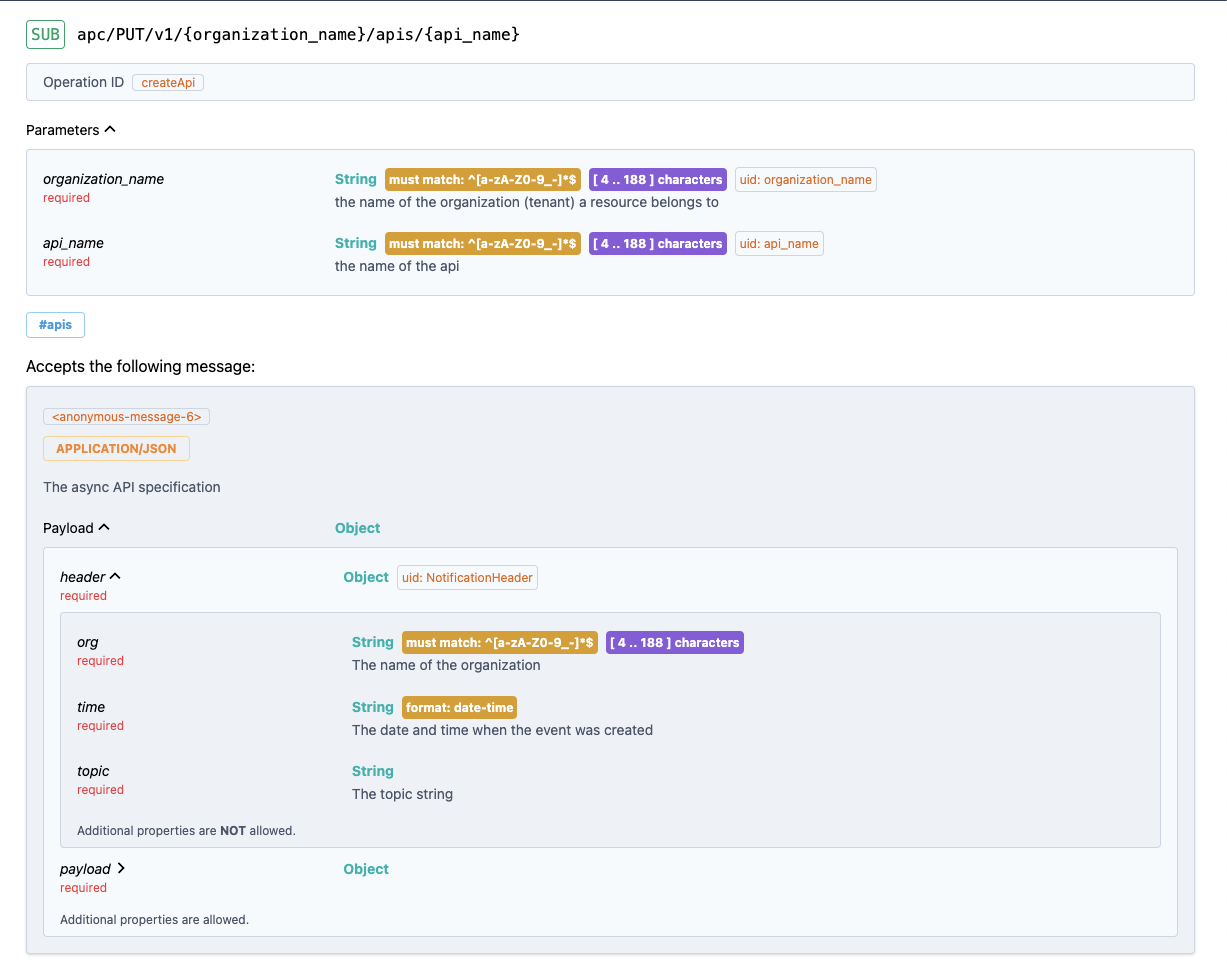

Example - event produced on creation of an API:

Consumer APIs

There are Async APIs for speparate groups of events. These groups mirrot the groups (tags) used in the Connector’s OpenAPI This allows to offer one or more specific sets of notifications as API Products for consuming applications.

These are the Async APIs available:

• API Resource Notificiations: apis.yml

• API Product Resource Notifications: apiProducts.yml

• Teams and team apps Resource Notifications: teams.yml

• Developers and developer apps Resource Notifications: developers.yml

• Apps Resource Notifications (including teams and developers apps): apps.yml

• Environments Resource Notifications: environments.yml

• Management Resource Notifications: management.yml

All of the above API Contracts are available on the Connector for download at this Base URL: http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer

• For example the APIs contract can be found at http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/apis.yml

Example - event emitted on creation of an API:

Create a Notification Hub Organization

To create the Hub you can use the Connector configuration tool located in https://github.com/solace-iot-team/platform-api/tree/main/api-implementation/tools

The tool expects a configuraiton file that it applies to generate the required object in the Connector such as Organization, Environments, APIs. The template below can also be found in the same github location (notification.hub.template.json). You will need to adjust the values in brackets <> and you may want to taylor the list of APIs that should be set up in your Hub. See comments below.

{
  "server": {
    "baseUrl": "http:/<CONNECTOR_HOST>:<CONNECTOR_PORT>/v1",
    "admin": {
      "username": "<CONNECTOR_ADMIN>",
      "password": "${env:SERVER_ADMIN_PASSWORD}"
    }
  },
  "organization": {
    "name": "<HUB_ORGANIZATION>",
    "token": "${env:ORGANIZATION_CLOUD_TOKEN}",
    "admin": {
      "username": "<ORG_ADMIN>",
      "password": "${env:ORGANIZATION_ADMIN_PASSWORD}"
    }
  },
  "services": [
    "<Solace PS+ Service Name>"
  ],
  "apis": {
    "NotificationProvider": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/producer/api.yml",
    "APINotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/apis.yml",
    "APIProductNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/apiProducts.yml",
    "TeamNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/teams.yml",
    "DeveloperNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/developers.yml",
    "AppNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/apps.yml",
    "EnvironmentNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/environments.yml",
    "ManagementNotifications": "http://<CONNECTOR_HOST>:<CONNECTOR_PORT>/notification-api/consumer/management.yml"
  },
  "application": {
    "name": "<PROVIDER_APP_NAME>",
    "owner": "<DEV_NAME>",
    "credentials": {
      "username": "${env:APPLICATION_CONSUMER_KEY}",
      "password": "${env:APPLICATION_CONSUMER_SECRET}"
    }
  }
}

Let’s look at the detail of this configuration:

• The server element contains how the tool should connect.

  • You need to adjust two values in the element:

    • baseUrl - replace the <CONNECTOR_HOST> and <CONNECTOR_PORT> with the values where your Connector is running

    • admin.username - replace the value with the admin user of your connector (needs to have platform-admin role).

  • You also need to provide the server password as an envirohnment variable.

• The organization element describes the Hub Organization:

  • You need to adjust the followig elements: * name - the name for the Hub Organization

    • admin.username - the username of an organization admin (needs to have org-admin role).

• The services element lists the PS+ Services that should be configured as environments:

  • You need to list the Service names as shown in Solace Cloud Mission Control

• The apis section lists all the Async APIs that should be uploaded into the Hub.

  • You need to replace the <CONNECTOR_HOST> and <CONNECTOR_PORT> in all the URLs with the values where your Connector is running.

  • You can remove any APIs that you don’t need. You can always upload these APIs later, for example via the Async APIM Portal.

• The application section list the information required to set up a default app

  • Provide an app name in the name element. Also replace the owner value with a developer name that you would like to use for the owner.

  • The app credentials can be provided in the environment variables.

Warning

TODO - instructions - To execute the tool setup your environment variables and run …

Configure and manage the Hub

Warning

TODO - add section

Outline:

Overview of what was set up

Obtaining configuration to use the Hub with an organization

How to set up a target application
